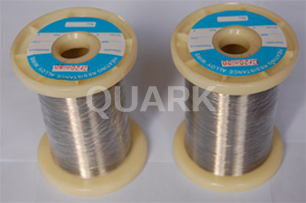

产品名称: 镍铬
发布日期: 2014-12-18
点击数: 2128
二维码:
简述:
性能 Performance 牌號 Alloy Nomenclature Nomenclatur |
Cr15Ni60 | Cr20Ni80 | Cr30Ni70 | Cr20Ni35 | |||
主要化學成份 Main Chemical Composition |
Si | 0.75~1.60 | 0.75~1.60 | 0.75~1.60 | 0.75~1.60. | ||
Cr | 15.0~18.0 | 20.0~20.3 | 28.0~31.0 | 18.0~24.0 | |||
Ni | 55.0~61.0 | 余量 Rest | 余量 Rest | 32~38 | |||
Fe | 余量 Rest | 余量 Rest | |||||
元件最高使用溫度(℃ ) Max.Continuous service temp of element |
1150 | 1200 | 1250 | 1000 | `1300 | ||
熔點(℃ ) Melting point |
1390 | 1400 | 1380 | 1390 | 1455 | ||
電阻率(20℃ ) (Ωmm²/m) Resistivity at 20℃ |
1.11~1.15±0.05 | 1.09~1.14±0.05 | 1.18~1.20±0.05 | 1.04±0.05 | <0.15 | ||
密度 Density(g/cm3) | 8.2 | 8.4 | 8.1 | 7.9 | 8.9 | ||
線膨脹系數(20~ 1000℃) Coefficient of linear expansion(2×10 -6/℃) |
13.0 | 14.0 | 17.1 | 13.0 | |||
比熱(KJ/kg.k) specific heat |
0.46 | 0.44 | 0.46 | 0.49 | |||
道熱系數(W/m.k) coefficient of thermal conductivity |
12.65 | 16.75 | 12.56 | 15.12 | |||
延伸率% Elongation at rupture | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ||
磁性能 Magnetic Properties | 無磁性 non-magnetic | 無磁性 non-magnetic | 無磁性 non-magnetic | 無磁性 non-magnetic | 磁性 magnetic | ||
顯微組機 Micrographic structure | 奧氏體 austenitic | 奧氏體 austenitic | 奧氏體 austenitic | 奧氏體 austenitic |
Crl5Ni60
元件最高使用溫度 1150℃
Max.continuous service temp 1150℃
20℃電阻率1.11-1.15±0.05Ωmm²/m
Resistivity at 20℃1.11-1.15±0.05Ωmm²/m
密度8.2g/cm³
Density 8.2g/cm³
不同工作溫度時的電阻修正系數 Ct=Rt/R20
To obtain resistivity at working temerature multiply by the factor
t℃ | 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
Ct | 1.000 | 1.002 | 1.005 | 1.008 | 1.012 | 1.023 | 1.024 | 1.026 | 1.028 | 1.030 | 1.032 |
線徑 (mm) Diameter | 截面積(mm²) Cross sectional | 每米表面積Surface per meter(cm²/m) | 每米質量(kg/m) Quality per meter | 每千克長度(m/kg) Length per kilogram | 20℃每米電阻(Ω/m) Resistance per meter at 20℃ | 20℃每歐長度(m/Ω) Length per ohm at 20℃ |
0.10 | 0.0078 | 3.14 | 0.000064 | 15527 | 142.6 | 0.00701 |
0.12 | 0.0113 | 3.77 | 0.000093 | 10783 | 99.0 | 0.01010 |
0.15 | 0.0177 | 4.71 | 0.000145 | 6901 | 63.4 | 0.01578 |
0.17 | 0.0227 | 5.34 | 0.000186 | 5373 | 44.1 | 0.02270 |
0.19 | 0.0284 | 5.97 | 0.000232 | 4301 | 39.5 | 0.02530 |
0.21 | 0.0346 | 6.60 | 0.000284 | 3521 | 32.3 | 0.03090 |
0.25 | 0.0491 | 7.85 | 0.000403 | 2484 | 22.8 | 0.04380 |
0.27 | 0.0573 | 8.48 | 0.000469 | 2130 | 19.6 | 0.05112 |
0.29 | 0.0661 | 9.11 | 0.000542 | 1846 | 17.0 | 0.05900 |
0.31 | 0.0755 | 9.74 | 0.000619 | 1616 | 14.8 | 0.06739 |
0.35 | 0.0962 | 11.00 | 0.000789 | 1268 | 11.6 | 0.0859 |
0.40 | 0.1257 | 12.57 | 0.00103 | 970 | 8.91 | 0.1122 |
0.45 | 0.1590 | 14.14 | 0.00130 | 767 | 7.04 | 0.1420 |
0.50 | 0.1963 | 15.71 | 0.00161 | 621 | 5.70 | 0.1753 |
0.60 | 0.283 | 18.85 | 0.00232 | 431 | 4.07 | 0.2459 |
0.70 | 0.385 | 22.0 | 0.00316 | 317 | 2.99 | 0.3346 |
0.80 | 0.503 | 25.1 | 0.00412 | 243 | 2.29 | 0.4371 |
0.90 | 0.636 | 28.3 | 0.00522 | 1917 | 1.81 | 0.5532 |
1.00 | 0.785 | 31.4 | 0.00644 | 155.3 | 1.464 | 0.683 |
1.20 | 1.131 | 37.7 | 0.00927 | 107.8 | 1.017 | 0.983 |
1.40 | 1.539 | 44.0 | 0.01262 | 79.2 | 0.747 | 1.339 |
1.60 | 2.01 | 50.3 | 0.01648 | 60.7 | 0.572 | 1.748 |
1.80 | 2.54 | 56.5 | 0.0209 | 47.9 | 0.452 | 2.213 |
2.00 | 3.14 | 62.8 | 0.0258 | 38.8 | 0.366 | 2.732 |
2.20 | 3.80 | 69.1 | 0.0312 | 32.1 | 0.303 | 3.306 |
2.50 | 4.91 | 78.5 | 0.0403 | 24.8 | 0.234 | 4.268 |
2.80 | 6.16 | 88.0 | 0.0505 | 19.80 | 0.1868 | 5.35 |
3.00 | 7.07 | 94.2 | 0.0580 | 17.25 | 0.1627 | 6.15 |
3.50 | 9.62 | 110.0 | 0.0789 | 12.68 | 0.1195 | 8.37 |
4.00 | 12.57 | 125.7 | 0.1031 | 9.70 | 0.0915 | 10.93 |
4.50 | 15.90 | 141.4 | 0.1304 | 7.67 | 0.0723 | 13.83 |
5.00 | 19.63 | 157.1 | 0.1610 | 6.21 | 0.0586 | 17.07 |
5.50 | 23.80 | 172.8 | 0.1945 | 5.13 | 0.0484 | 20.66 |
6.00 | 28.30 | 188.5 | 0.232 | 4.31 | 0.0407 | 24.59 |
6.50 | 33.20 | 204 | 0.272 | 3.68 | 0.0347 | 28.85 |
7.00 | 38.50 | 220 | 0.316 | 3..17 | 0.0299 | 33.46 |
Cr20Ni80
元件最高使用溫度 1200℃
Max.continuous service temp 1200℃
20℃電阻率1.09-1.14±0.05mm²/m
Resistivity at 20℃1.09-1.14±0.05Ωmm²/m
密度8.4g/cm³
Density 8.4g/cm³
不同工作溫度時的電阻修正系數 Ct=Rt/R20
To obtain resistivity at working temerature multiply by the factor
t℃ | 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
Ct | 1.000 | 1.002 | 1.005 | 1.008 | 1.012 | 1.023 | 1.024 | 1.026 | 1.028 | 1.030 | 1.032 |
線徑 (mm) Diameter | 截面積(mm²) Cross sectional | 每米表面積Surface per meter(cm²/m) | 每米質量(kg/m) Quality per meter | 每千克長度(m/kg) Length per kilogram | 20℃每米電阻(Ω/m) Resistance per meter at 20℃ | 20℃每歐長度(m/Ω) Length per ohm at 20℃ |
0.10 | 0.0078 | 3.14 | 0.000056 | 15158 | 138.78 | 0.0072 |
0.12 | 0.0113 | 3.77 | 0.000095 | 10526 | 96.38 | 0.0104 |
0.15 | 0.0177 | 4.71 | 0.000148 | 6737 | 61.68 | 0.0162 |
0.17 | 0.0227 | 5.34 | 0.000191 | 5245 | 48.02 | 0.0208 |
0.19 | 0.0284 | 5.97 | 0.000238 | 4199 | 38.44 | 0.0260 |
0.21 | 0.0346 | 6.60 | 0.000291 | 3437 | 31.47 | 0.0318 |
0.25 | 0.0491 | 7.85 | 0.000412 | 2425 | 22.21 | 0.0450 |
0.27 | 0.0573 | 8.48 | 0.000481 | 2079 | 19.04 | 0.0525 |
0.29 | 0.0661 | 9.11 | 0.000555 | 1802 | 16.50 | 0.0606 |
0.31 | 0.0755 | 9.74 | 0.000634 | 1577 | 14.44 | 0.0692 |
0.35 | 0.0962 | 11.00 | 0.000808 | 1237 | 11.33 | 0.0883 |
0.40 | 0.1257 | 12.57 | 0.00106 | 947 | 8.67 | 0.1153 |
0.45 | 0.1590 | 14.14 | 0.00134 | 749 | 6.85 | 0.1459 |
0.50 | 0.1963 | 15.71 | 0.00165 | 606 | 5.55 | 0.1801 |
0.60 | 0.283 | 18.85 | 0.00238 | 421 | 4.00 | 0.250 |
0.70 | 0.385 | 22.0 | 0.00323 | 310 | 2.94 | 0.341 |
0.80 | 0.503 | 25.1 | 0.00422 | 237 | 2.25 | 0.445 |
0.90 | 0.636 | 28.3 | 0.00534 | 187.1 | 1.78 | 0.563 |
1.00 | 0.785 | 31.4 | 0.00659 | 152.3 | 1.44 | 0.695 |
1.20 | 1.131 | 37.7 | 0.00950 | 105.3 | 0.999 | 1.001 |
1.40 | 1.539 | 44.0 | 0.01293 | 77.4 | 0.734 | 1.36 |
1.60 | 2.01 | 50.3 | 0.01683 | 59.2 | 0.562 | 1.78 |
1.80 | 2.54 | 56.5 | 0.0214 | 46.7 | 0.444 | 2.25 |
2.00 | 3.14 | 62.8 | 0.0264 | 37.9 | 0.360 | 2.78 |
2.20 | 3.80 | 69.1 | 0.0319 | 31.3 | 0.297 | 3.36 |
2.50 | 4.91 | 78.5 | 0.0412 | 24.3 | 0.230 | 4.34 |
2.80 | 6.16 | 88.0 | 0.0517 | 19.34 | 0.184 | 5.45 |
3.00 | 7.07 | 94.2 | 0.0594 | 16.84 | 0.160 | 6.26 |
3.50 | 9.62 | 110.0 | 0.0808 | 12.38 | 0.118 | 8.44 |
4.00 | 12.57 | 125.7 | 0.1056 | 9.47 | 0.0907 | 11.02 |
4.50 | 15.90 | 141.4 | 0.1336 | 7.49 | 0.0717 | 13.95 |
5.00 | 19.63 | 157.1 | 0.1649 | 6.06 | 0.0581 | 17.22 |
5.50 | 23.80 | 172.8 | 0.1996 | 5.01 | 0.0480 | 20.84 |
6.00 | 28.30 | 188.5 | 0.237 | 4.21 | 0.0403 | 24.80 |
6.50 | 33.20 | 204 | 0.279 | 3.59 | 0.0344 | 29.11 |
7.00 | 38.50 | 220 | 0.323 | 3.09 | 0.0296 | 33.76 |
性能 Performance 牌號 Alloy Nomenclature Nomenclatur | Cr15Ni60 | Cr20Ni80 | Cr30Ni70 | Cr20Ni35 | ||
主要化學成份 Main Chemical Composition | Si | 0.75~1.60 | 0.75~1.60 | 0.75~1.60 | 0.75~1.60. | |
Cr | 15.0~18.0 | 20.0~20.3 | 28.0~31.0 | 18.0~24.0 | ||
Ni | 55.0~61.0 | 余量 Rest | 余量 Rest | 32~38 | ||
Fe | 余量 Rest | 余量 Rest | ||||
元件最高使用溫度(℃ ) Max.Continuous service temp of element | 1150 | 1200 | 1250 | 1000 | `1300 | |
熔點(℃ ) Melting point | 1390 | 1400 | 1380 | 1390 | 1455 | |
電阻率(20℃ ) (Ωmm²/m) Resistivity at 20℃ | 1.11~1.15±0.05 | 1.09~1.14±0.05 | 1.18~1.20±0.05 | 1.04±0.05 | <0.15 | |
密度 Density(g/cm3) | 8.2 | 8.4 | 8.1 | 7.9 | 8.9 | |
線膨脹系數(20~ 1000℃) Coefficient of linear expansion(2×10 -6/℃) | 13.0 | 14.0 | 17.1 | 13.0 | ||
比熱(KJ/kg.k) specific heat | 0.46 | 0.44 | 0.46 | 0.49 | ||
道熱系數(W/m.k) coefficient of thermal conductivity | 12.65 | 16.75 | 12.56 | 15.12 | ||
延伸率% Elongation at rupture | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | ≥ 20 | |
磁性能 Magnetic Properties | 無磁性 non-magnetic | 無磁性 non-magnetic | 無磁性 non-magnetic | 無磁性 non-magnetic | 磁性 magnetic | |
顯微組機 Micrographic structure | 奧氏體 austenitic | 奧氏體 austenitic | 奧氏體 austenitic | 奧氏體 austenitic |
